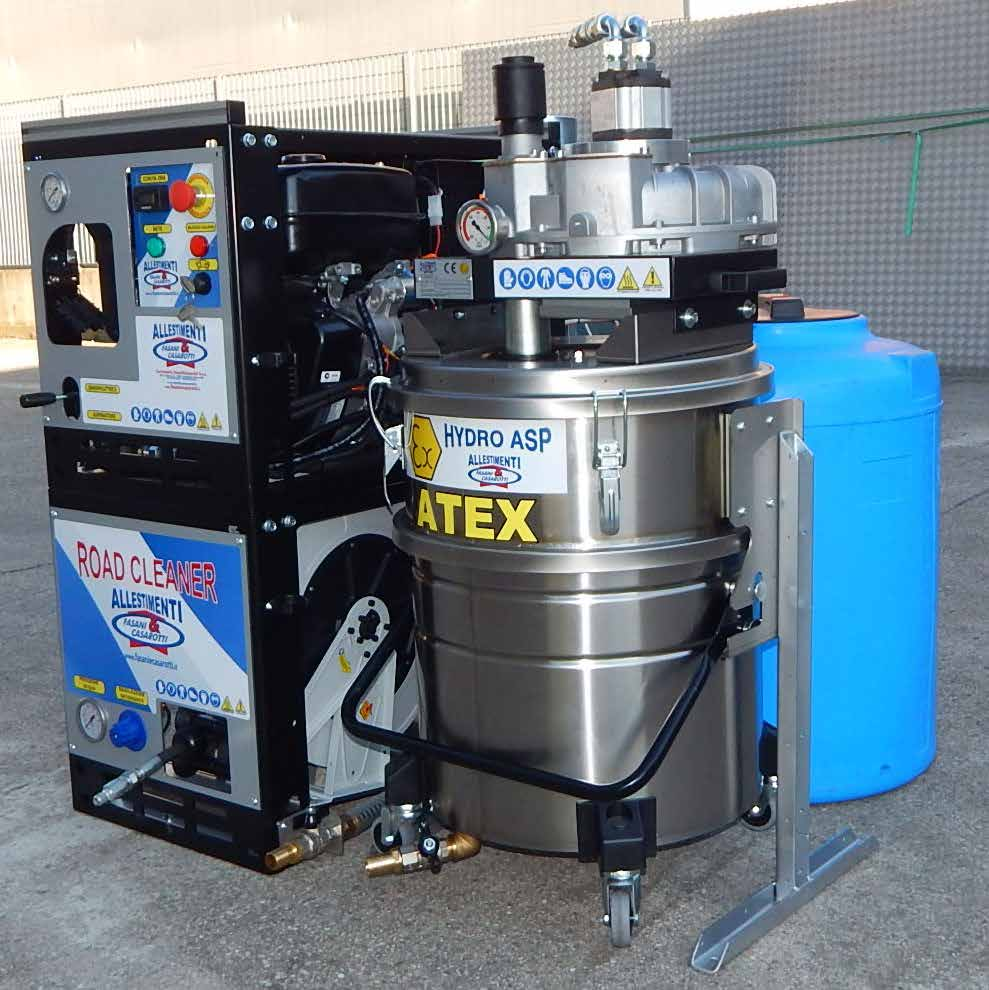

RC-M-ST

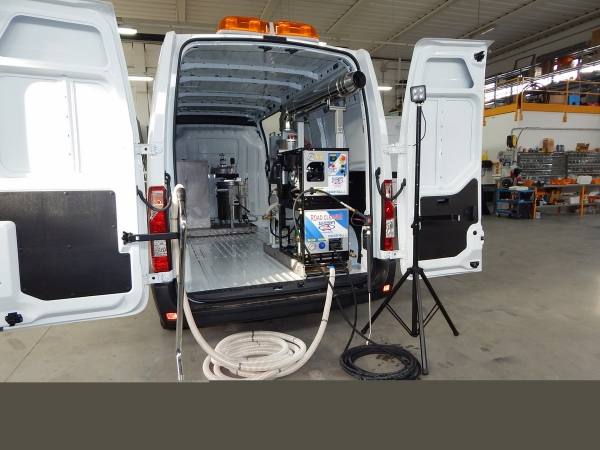

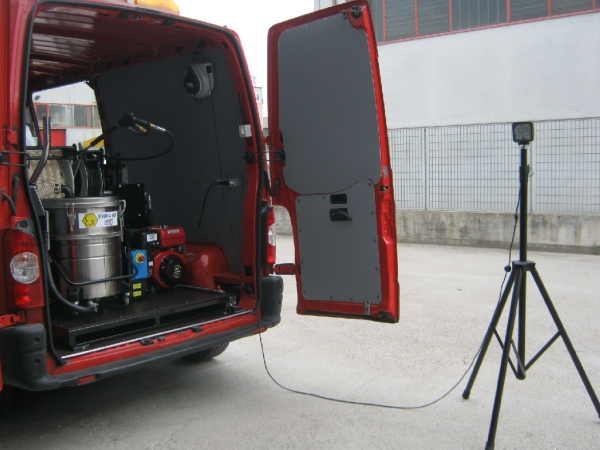

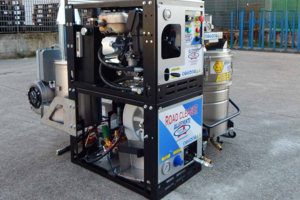

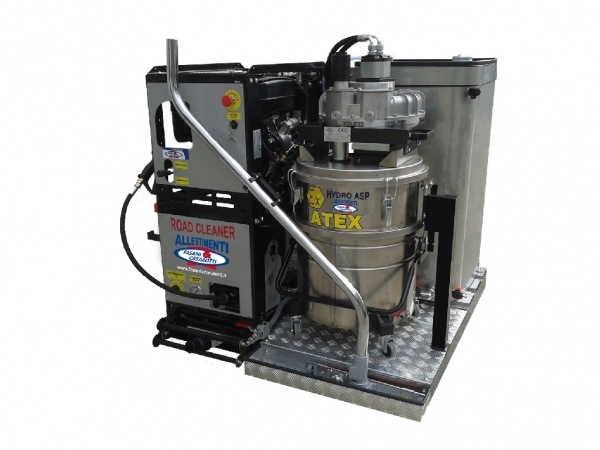

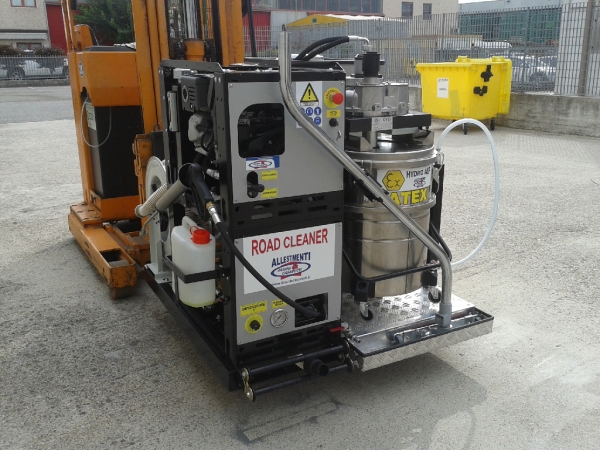

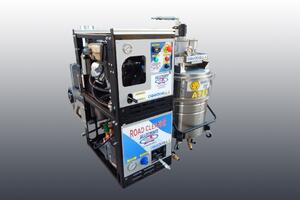

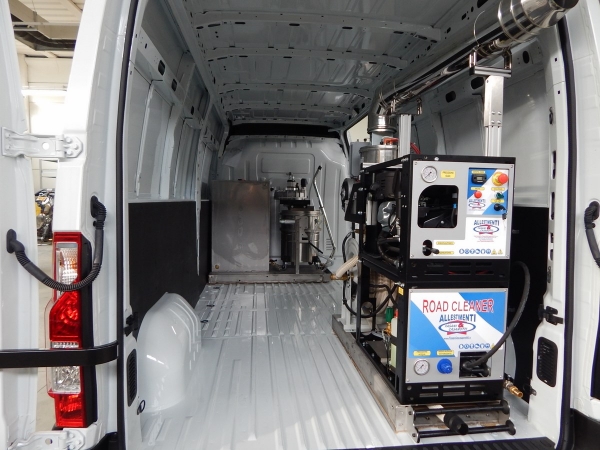

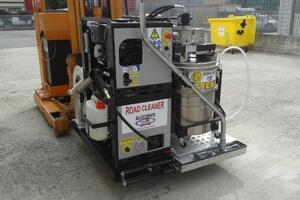

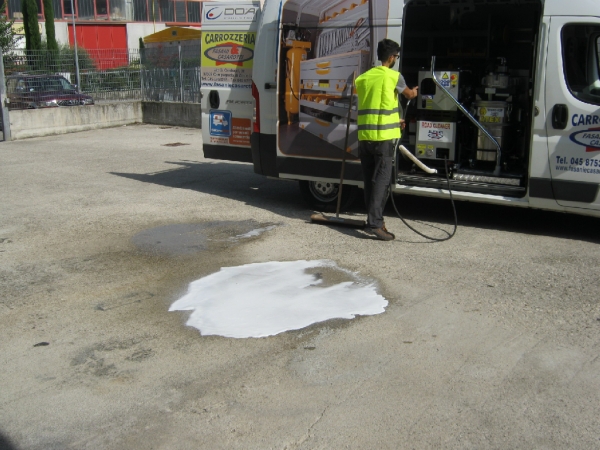

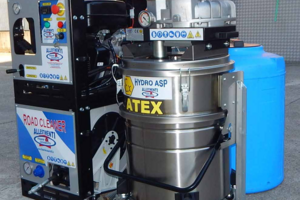

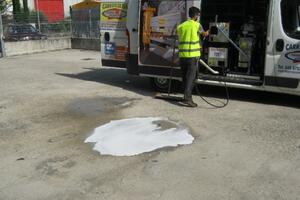

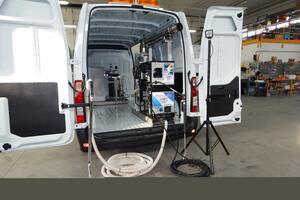

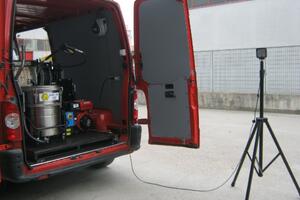

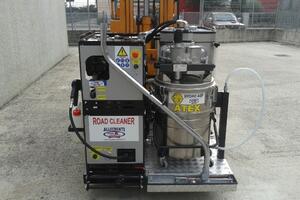

ROAD CLEANER hydraulic system for the post-accident pavement restoration featuring a control unit provided with a motor.
Use switches
Alternating suction system and high-pressure cleaning system
Frameless

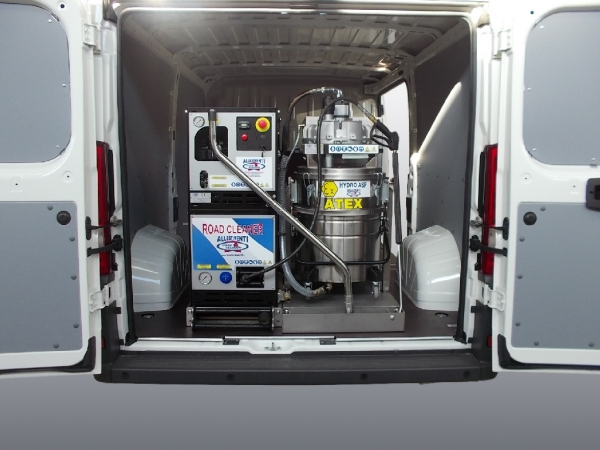

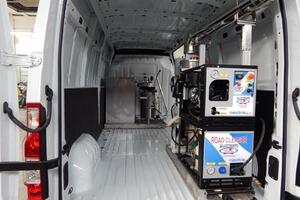

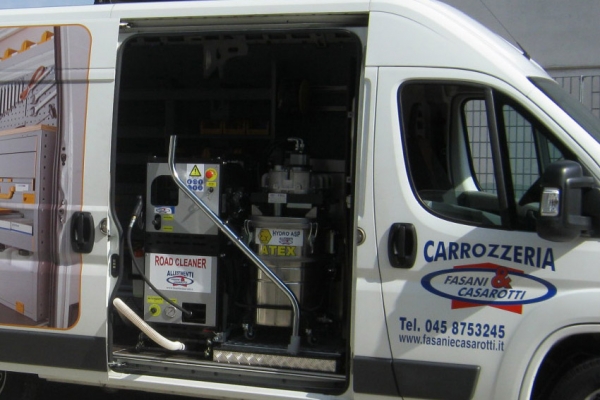

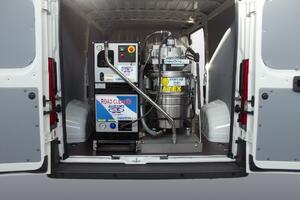

More compact, ideal for small vehicles

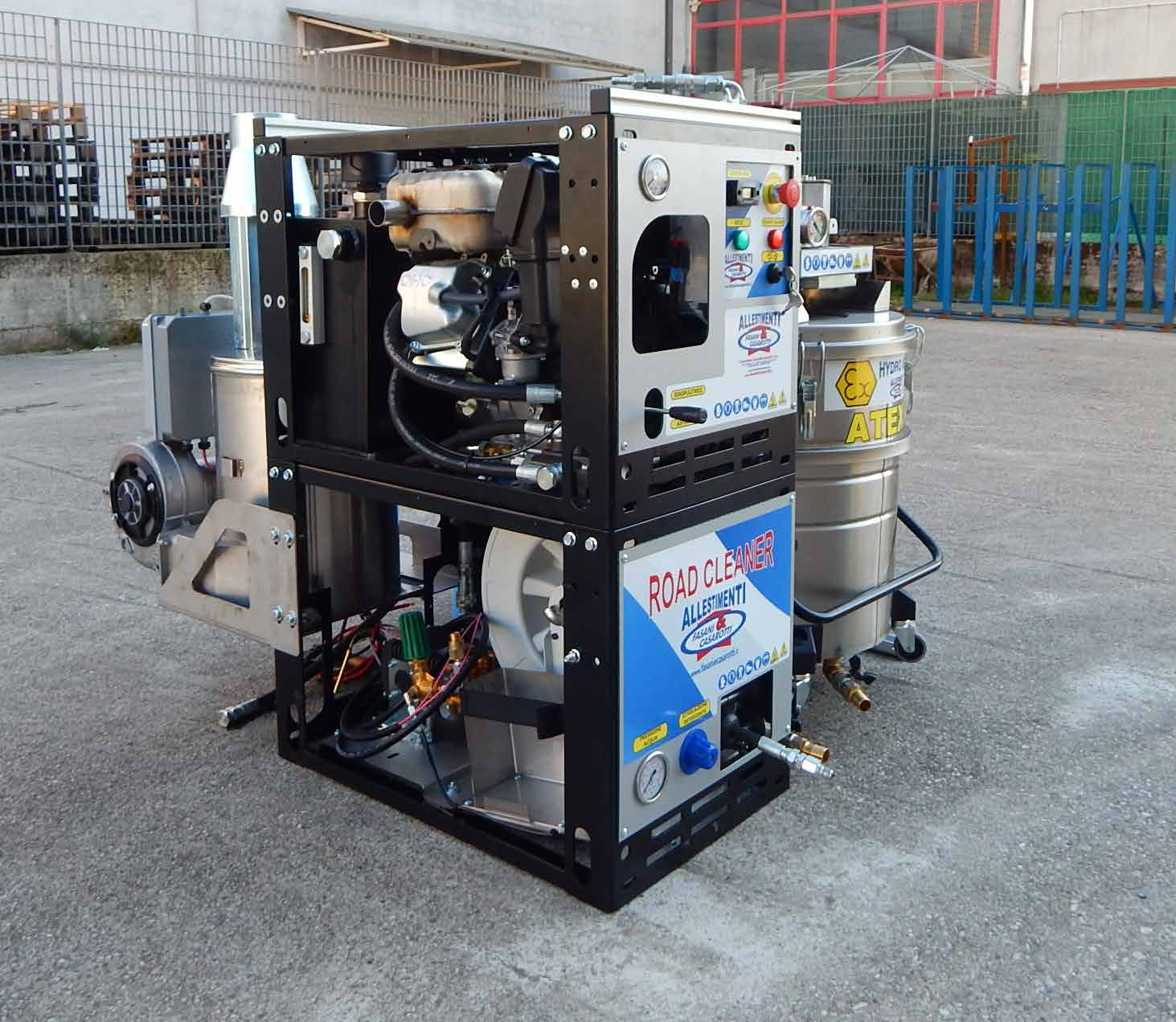

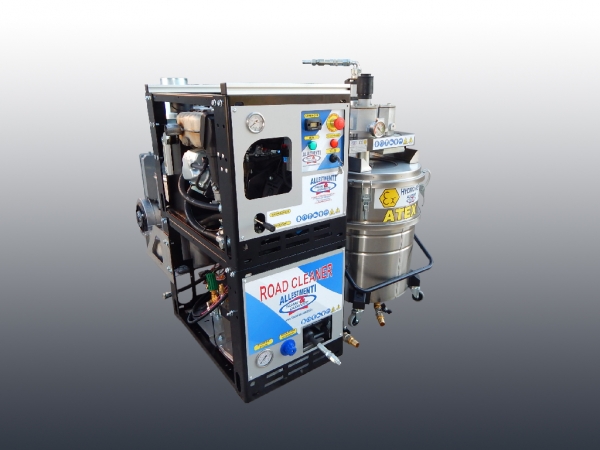

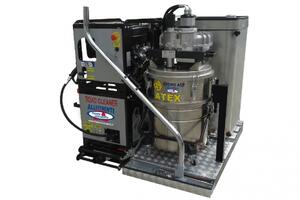

Hydraulic system featuring:

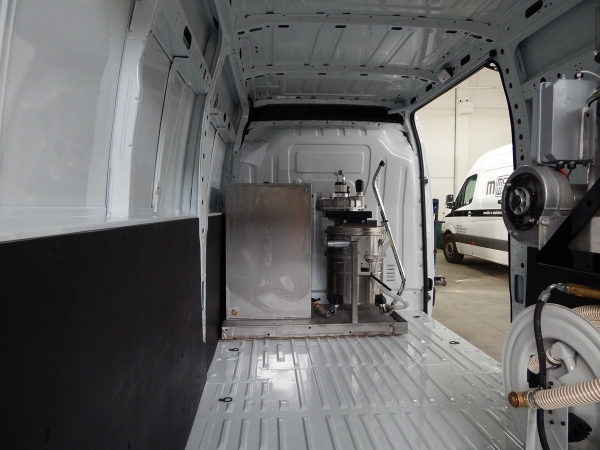

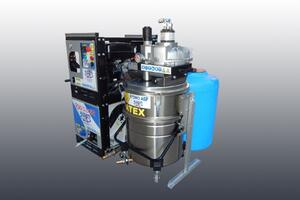

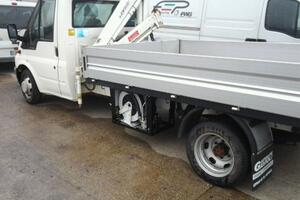

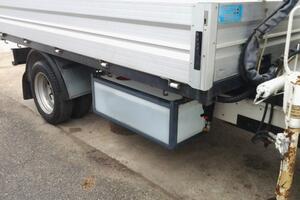

Three-element structure which can be assembled according to the space available
Self-weight 335 kg
Gasoline motor with electric starter (supplied without battery and designed for the battery wiring of the vehicle)
10-liter oil circuit tank with filter, level, heat exchanger and cooling electric fan

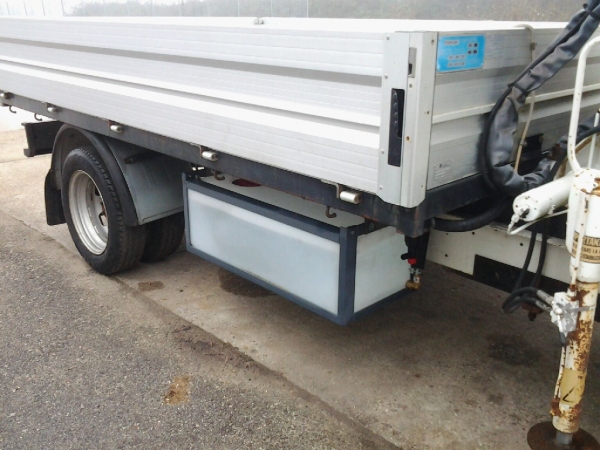

120-liter vertical cylindrical polyethylene water tank
5-liter detergent tank, with a proportional controller

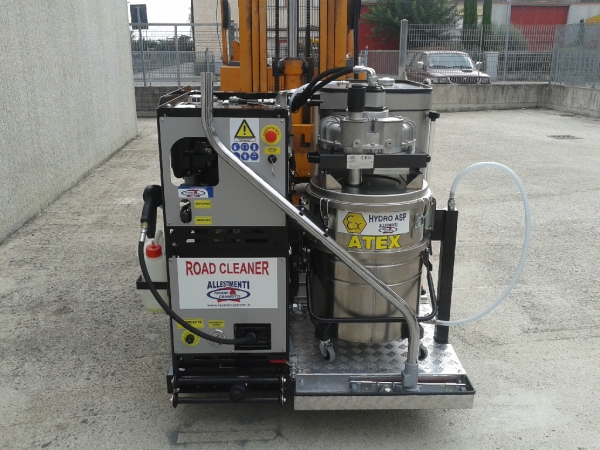

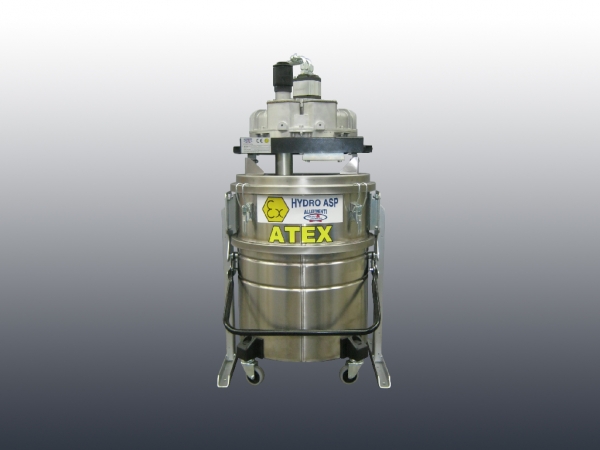

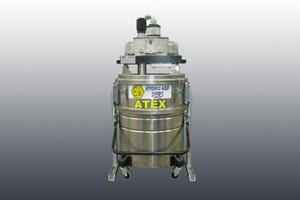

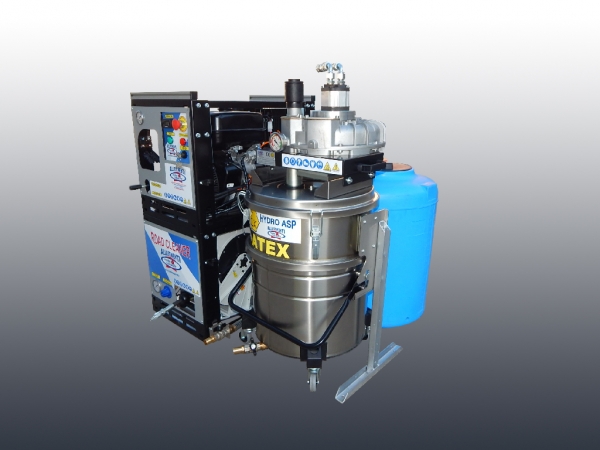

Liquid suction system with a hydraulic turbine and a 40-liter tank equipped with an overflow float, suction power: 3,000 mm H2O

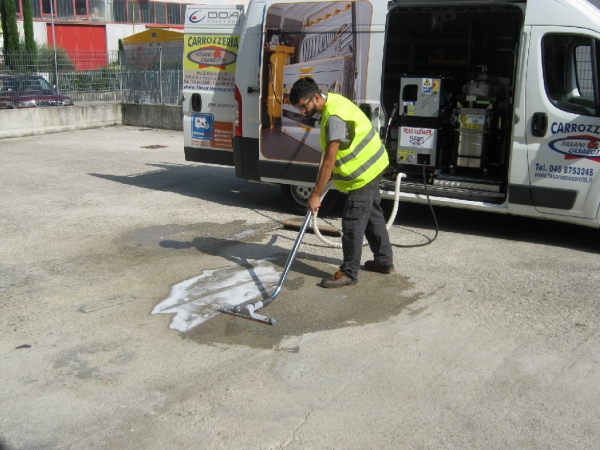

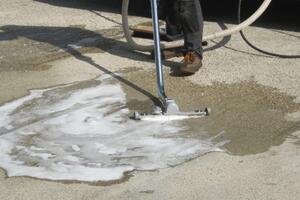

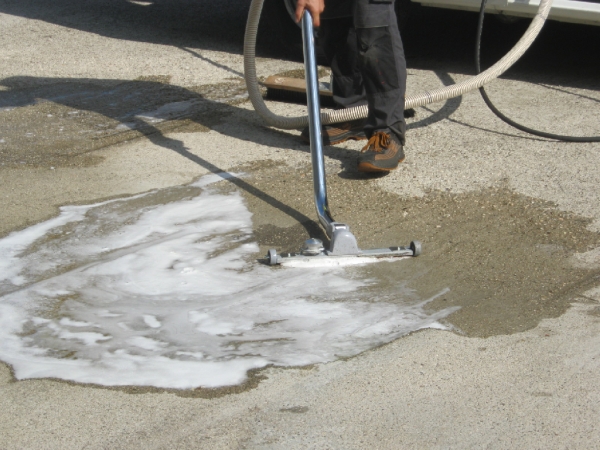

Suction brush with a hose (length 10 meters, internal diameter 38mm)

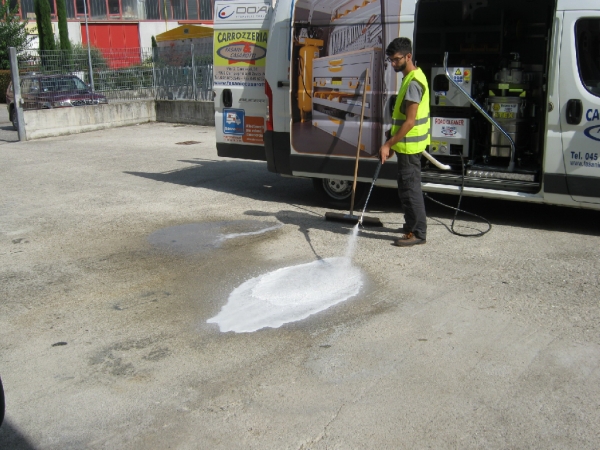

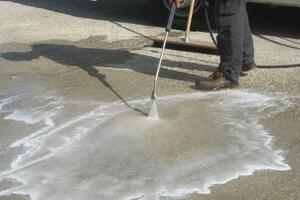

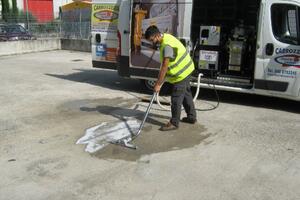

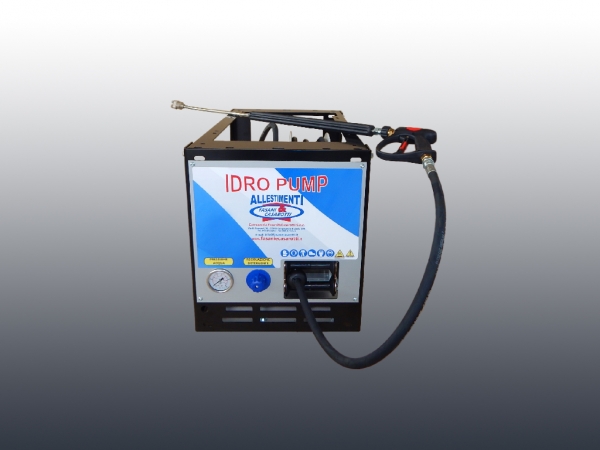

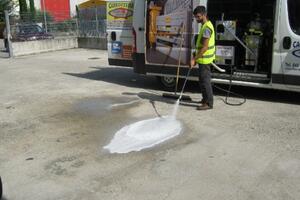

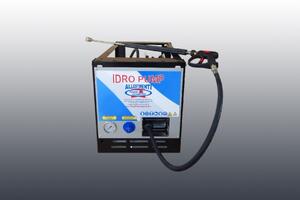

Hydraulic high-pressure cleaning system, flow rate 15 lt/min, pressure 180 BAR

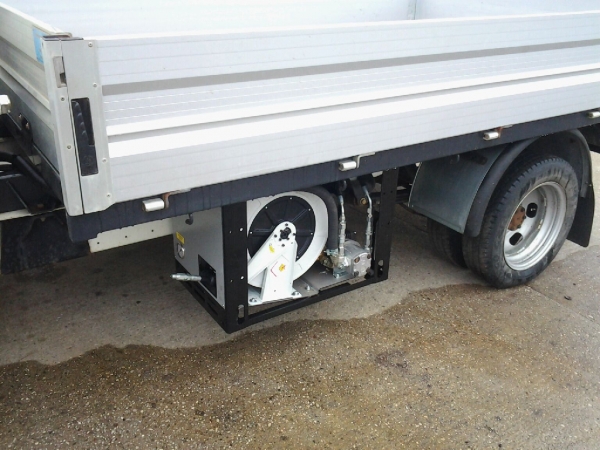

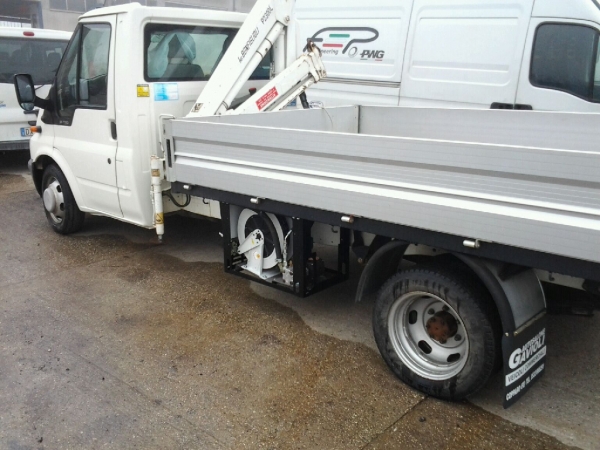

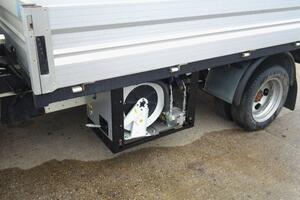

Automatic spring winder for the hydraulic high-pressure cleaning system hose (hose length 18 meters)

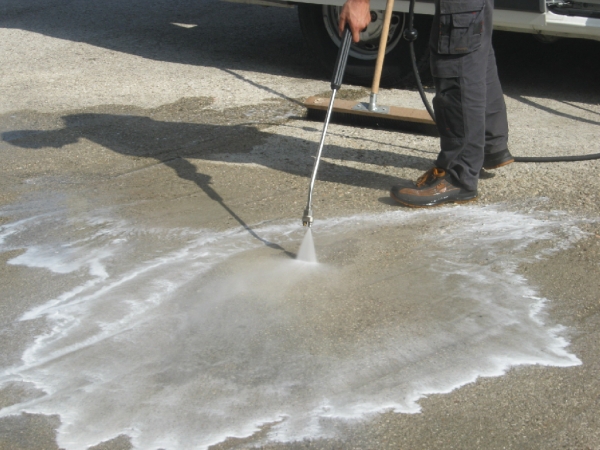

High-pressure cleaning system high and low pressure lance
Global assembly EC certification
Zone 1 and zone 21 ATEX certification for the liquid suction system
RC-MC-ST
Model with a diesel boiler for the production of hot water for the high-pressure cleaning system lance.
12V voltage operation of the vehicle
