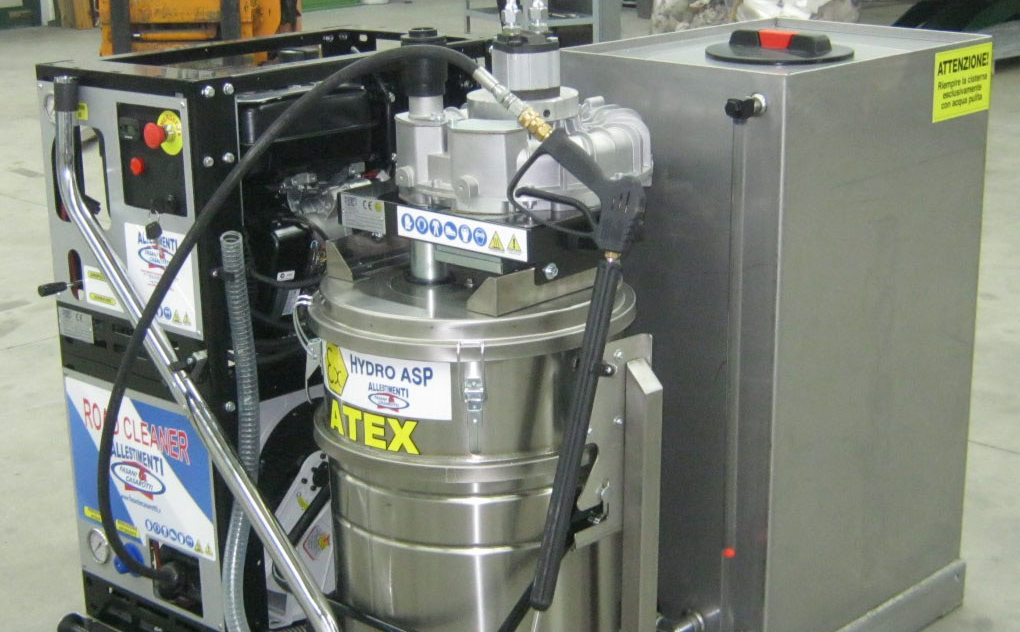

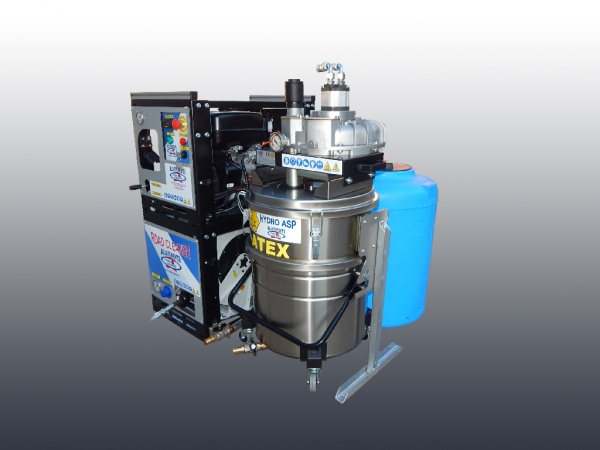

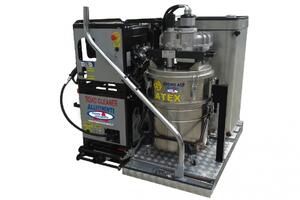

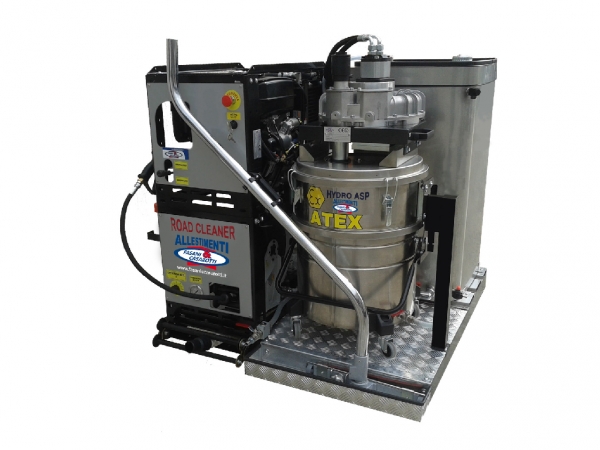

RC-M

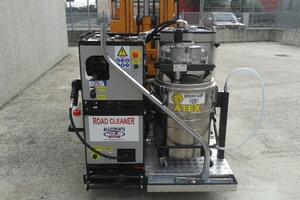

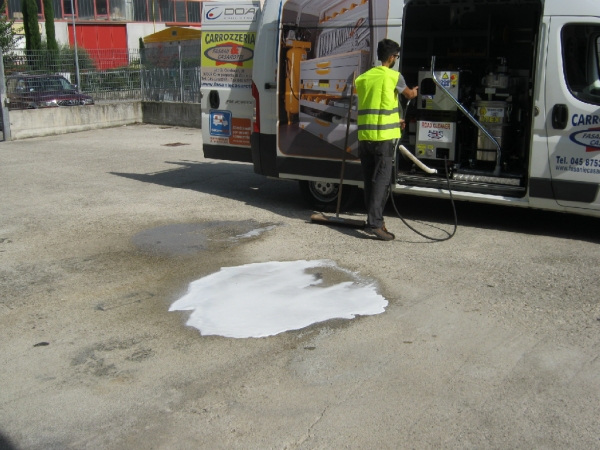

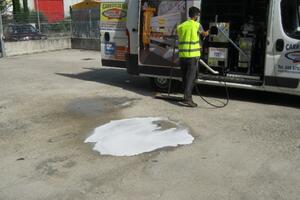

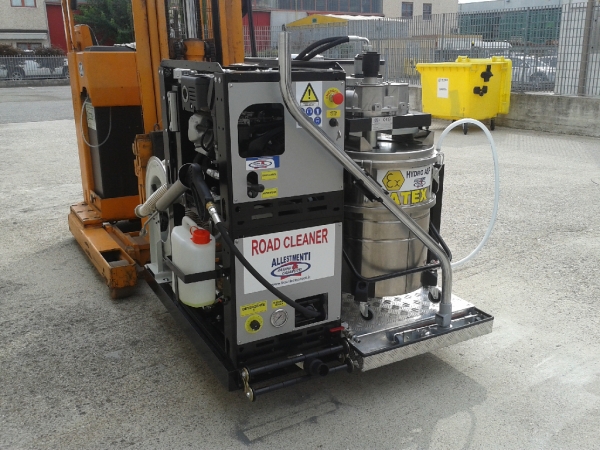

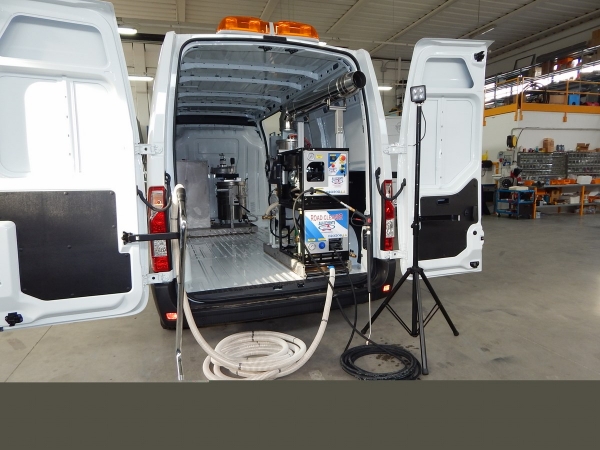

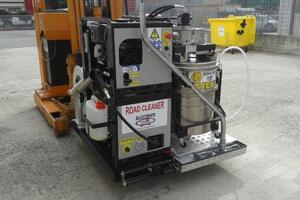

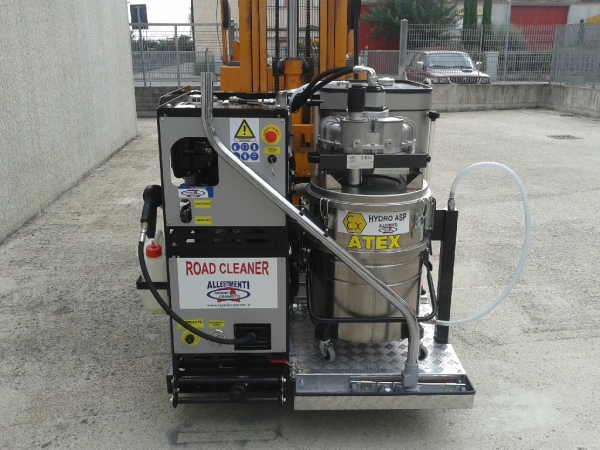

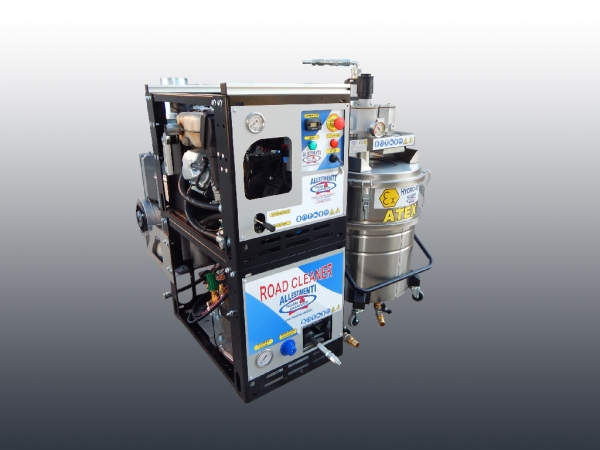

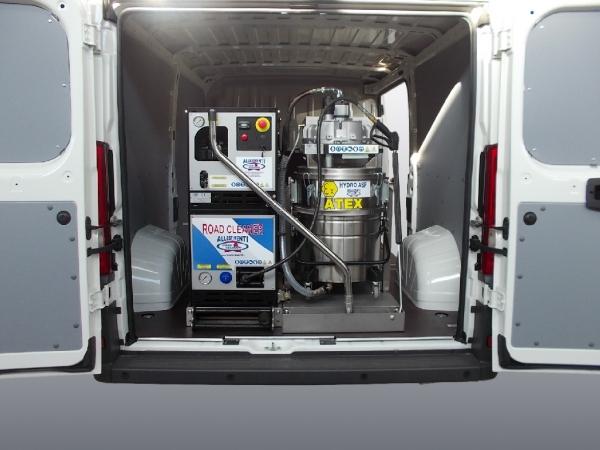

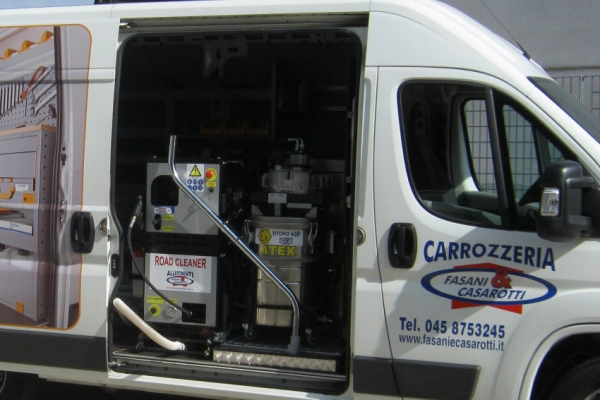

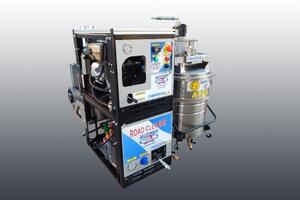

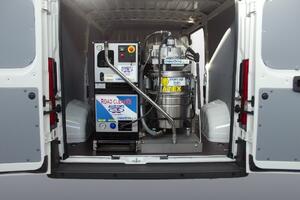

ROAD CLEANER hydraulic system for the post-accident pavement restoration featuring a control unit provided with a combustion motor.
Use switches
Alternating suction system and high-pressure cleaning system

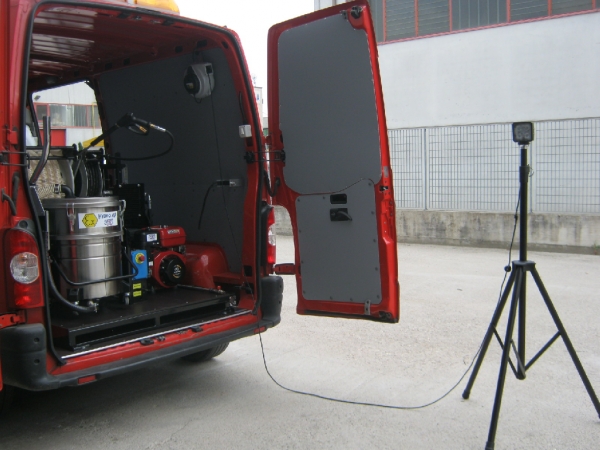

Hydraulic system featuring:
Gasoline motor with electric starter (supplied without battery and designed for the battery wiring of the vehicle)
10-liter oil circuit tank with filter, level, heat exchanger and cooling electric fan

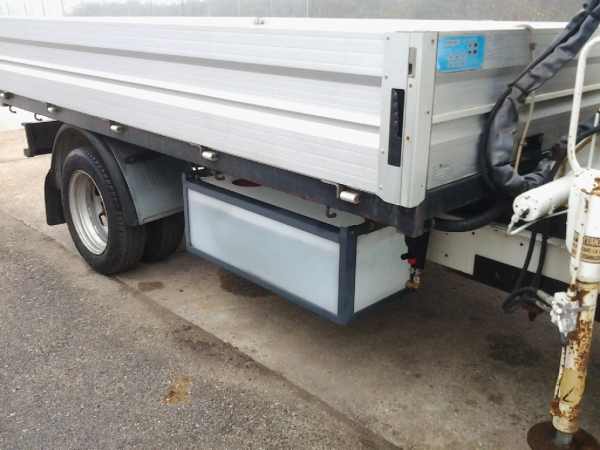

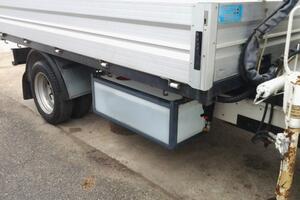

300-liter stainless steel water tank with internal anti-shake separators
5-liter detergent tank, with a proportional controller

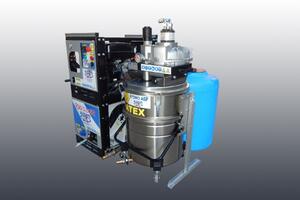

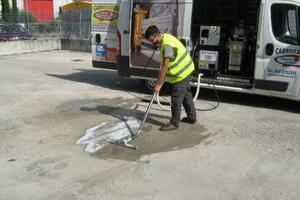

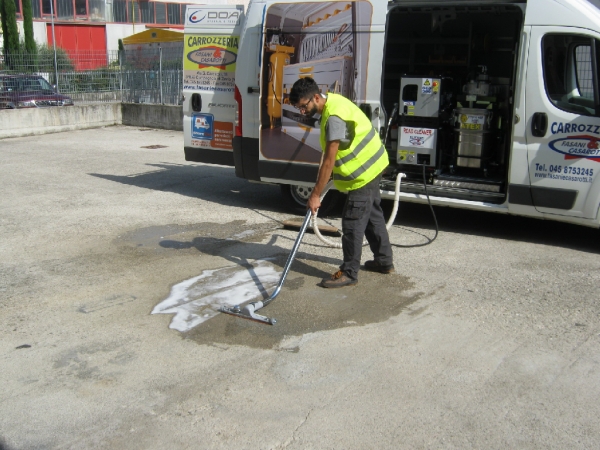

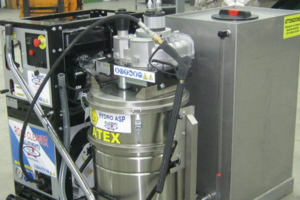

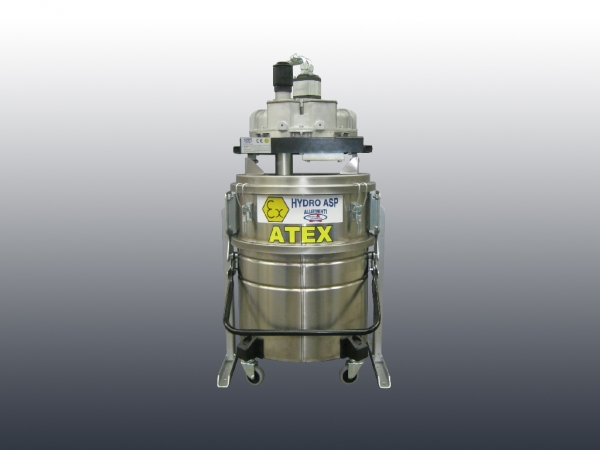

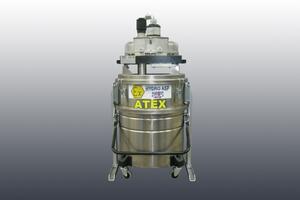

Liquid suction system with a hydraulic turbine and a 40-liter tank equipped with an overflow float, suction power: 3,000 mm H2O

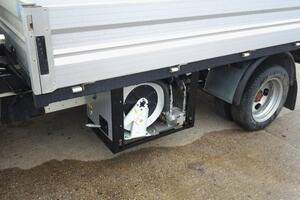

Automatic spring winder for the suction hose (hose length 10 m, internal diameter 38mm)

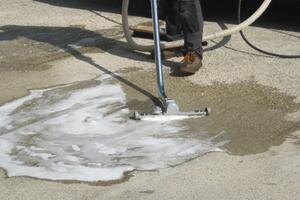

Suction brush

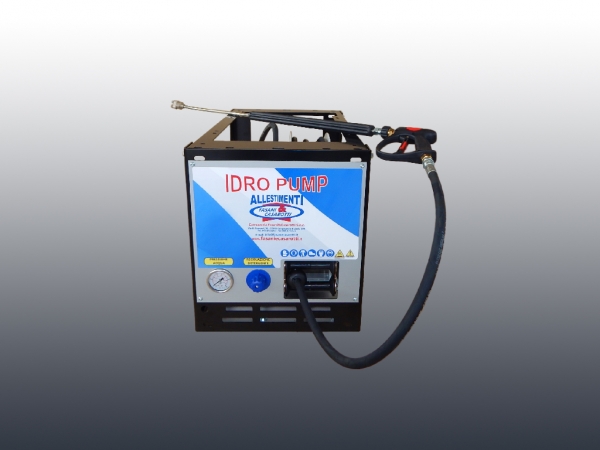

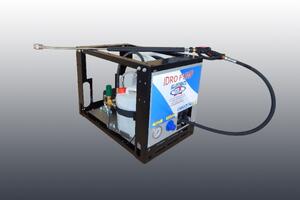

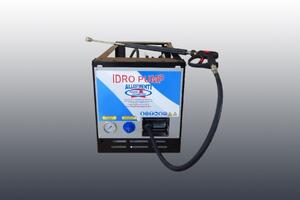

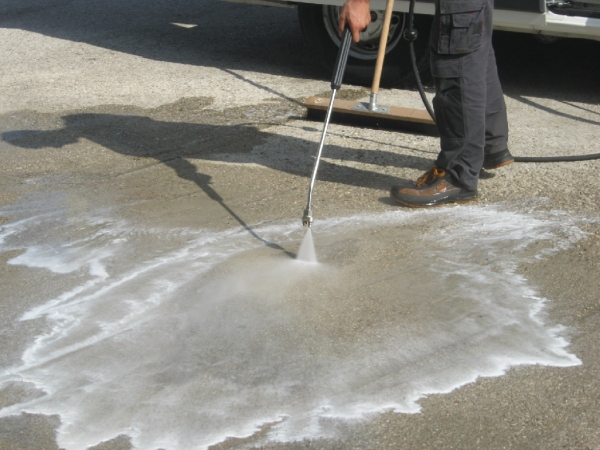

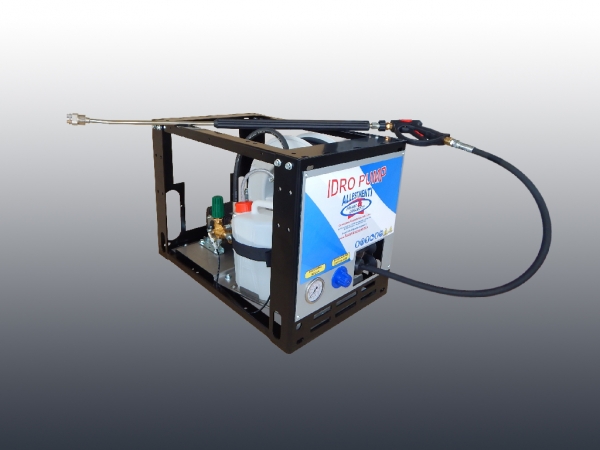

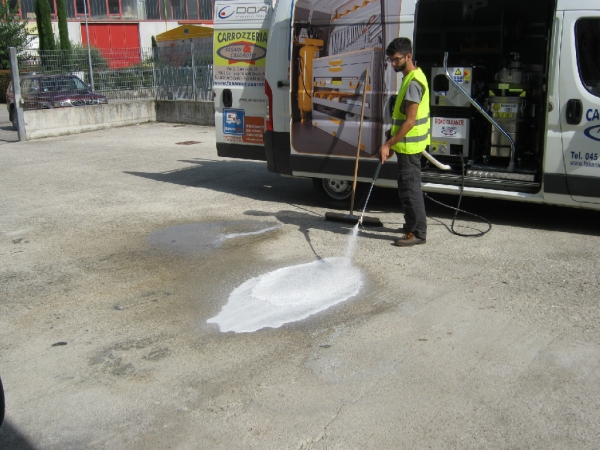

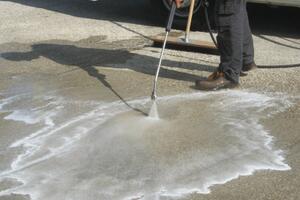

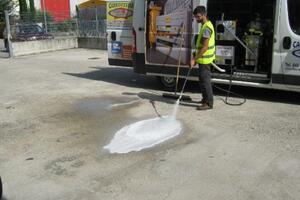

Hydraulic high-pressure cleaning system, flow rate 15 lt/min, pressure 180 BAR

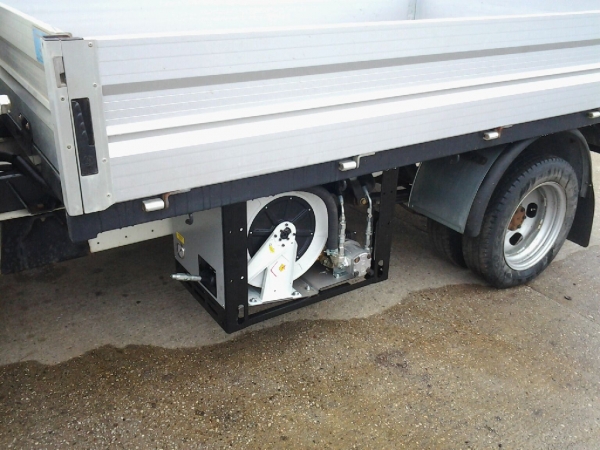

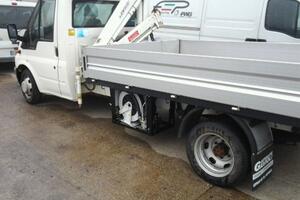

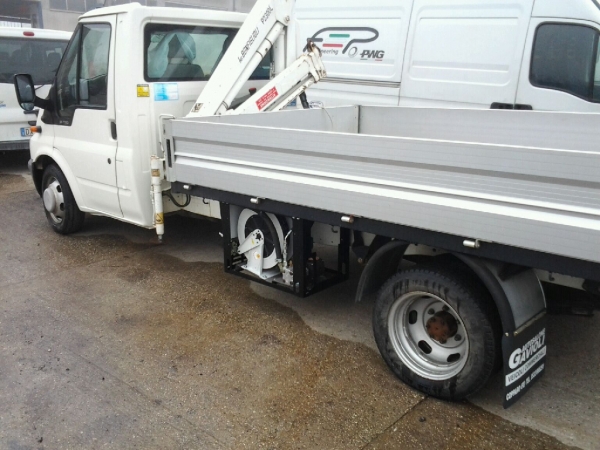

Automatic spring winder for the hydraulic high-pressure cleaning system hose (hose length 18 meters)
High-pressure cleaning system high and low pressure lance
Global assembly EC certification
Zone 1 and zone 21 ATEX certification for the liquid suction system
Overall dimensions 1,400 x 1,100 h. 1,250 mm

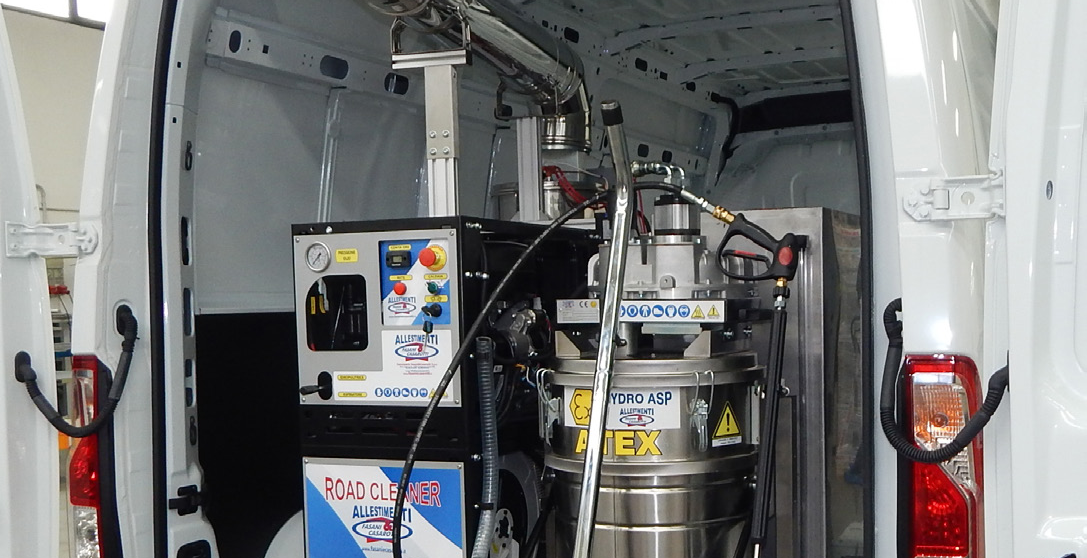

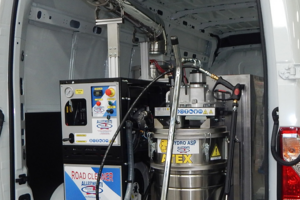

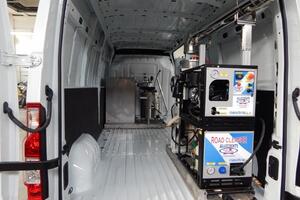

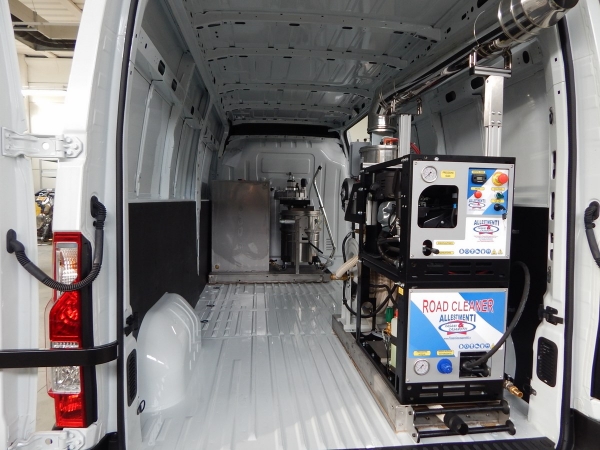

RC-MC
Model with a diesel boiler for the production of hot water for the high-pressure cleaning system lance.
12V voltage operation of the vehicle
